What Is a Reverse Flow Smoker and How Does It Differ From a Traditional Offset Smoker
A reverse flow smoker is a BBQ cooker where heat and smoke enter the cooking chamber, travel under a baffle plate, reverse direction, and exit through a rear chimney, creating more even grate temperatures than traditional offset smokers.
The Basic Structure
Heat starts in the firebox, travels horizontally into the cooking chamber, and hits a baffle plate beneath the grates. The baffle forces smoke and heat to reverse course, flowing back toward the front before rising and exiting through the rear exhaust stack.
At Blowin' Smoke Cookers, our reverse flow designs use heavy-duty steel and precision-engineered baffles. The Cabinet Smoker SNS 72, for example, has an insulated firebox and a baffled chamber with three slide-out cooking racks measuring 69″x 28″.
Key Differences in Design
The main difference comes down to the smoke and heat path.
Traditional offset smokers:
- Heat enters the chamber directly from the firebox
- Smoke travels in a straight line across the grates
- Temperature drops significantly from the hot end to the far end
- Requires constant adjustment and rotation of meat
Reverse flow smokers:
- Heat reverses under the baffle before reaching the grates
- Radiant heat radiates evenly from the baffle surface
- Temperature remains consistent across the cooking chamber
- Meat cooks more uniformly with less rotation needed
The baffle plate is the defining feature: without it, you have a standard offset.
The Airflow Path: How Heat and Smoke Move Through a Reverse Flow Smoker
Understanding how air moves through your smoker is the first step to controlling it.
Step-by-Step Airflow Explanation
Here's exactly what happens when you light a fire in a reverse flow smoker:
-
Combustion begins in the firebox. Wood or charcoal burns, creating hot gases and smoke, fed by air from the intake vents at the firebox door.
-
Heat and smoke travel into the cooking chamber. The hot air moves horizontally from the firebox opening into the main chamber where your meat sits on the cooking grates.
-
The baffle plate redirects the flow. Before heat can exit the far end of the chamber, it hits the reverse-flow plate mounted underneath the grates. This baffle forces all the heat and smoke to reverse direction.
-
Heat radiates upward from the baffle. The hot underside of the baffle radiates evenly across the cooking chamber, warming meat from below and above.
-
Smoke and heat rise toward the rear. After reversing under the baffle, the smoke and heat travel back toward the rear of the smoker and rise upward.
-
Air exits through the exhaust stack. The chimney (exhaust stack) at the rear creates draft. As hot air rises and exits, it pulls fresh air through the firebox, keeping the fire burning and maintaining the cycle.
This continuous loop is what makes reverse flow smokers work. The baffle forces the hot air to spend more time inside the chamber, distributing heat before it escapes.
The Role of the Baffle Plate
The baffle plate is the component that separates a reverse flow smoker from every other design. It sits horizontally about 6-8 inches below the cooking grates, catching incoming heat and smoke before they reach the far end of the chamber. In doing so it reverses the airflow and creates a large surface that radiates heat.
Heavier baffles retain more heat and radiate more consistently.
The Exhaust Stack and Draft Control
The exhaust stack (chimney) at the rear controls how fast air moves through the system, the draft. A strong draft pulls air quickly through the firebox, feeding oxygen to the fire and pushing hot air through the chamber faster; a weak draft slows everything down. Stack diameter and height determine draft: most reverse flow smokers have a 3-4 inch opening, and a taller stack creates more draft because the inside-outside temperature difference increases.
Heat Distribution and Temperature Consistency in Reverse Flow Smoker Design
The real advantage of reverse flow smokers is their ability to hold steady temperatures across the entire cooking chamber. This is what competition pitmasters rely on.
How Radiant Heat Works Under the Baffle
Radiant heat is energy that travels through space without heating the air in between, like the sun warming your face on a cold day. Inside a reverse flow smoker, the baffle plate becomes a radiant heat source: as hot air flows under it, the metal absorbs that heat and radiates it upward, warming your meat directly, not just the surrounding air.
Eliminating Hot Spots and Temperature Variation
Hot spots are areas where temperature spikes 25-50 degrees above your target, the enemy of consistent cooking. In traditional offsets they form near the firebox, and pitmasters rotate meat or use water pans to compensate. Reverse flow smokers eliminate most hot spots because the baffle distributes heat before it reaches the grates, keeping variation within 10-15 degrees instead of 30-50. That consistency is why reverse flow smokers dominate competition BBQ, where tenderness, color, and flavor are judged directly.
Cabinet Smoker SNS 72 Smoker Cabinet →
| Design Type | Temperature Range | Hot Spots | Meat Rotation Needed |
|---|---|---|---|
| Traditional Offset | 30-50° variation | Yes, near firebox | Frequent |
| Reverse Flow | 10-15° variation | Minimal | Rarely |
Reverse Flow Smoker Temperature Control: Mastering Fire Management
Controlling temperature in a reverse flow smoker requires understanding three variables: intake vents, exhaust vents, and fuel load.
Adjusting Intake and Exhaust Vents
The intake vents at the firebox door control how much air feeds the fire: more air means a hotter fire and higher chamber temperature. Open them fully when you light the fire, then close them gradually once you reach target temperature, most reverse flow smokers stabilize around 225-250°F with intakes half-open. The exhaust damper fine-tunes from there: opening it increases draft and raises temperature, closing it slows draft and lowers it.
Fuel Load and Combustion Management
How much fuel you load directly affects temperature and burn time. A full firebox burns hotter and longer; most pitmasters load about three-quarters full for a 6-8 hour cook, enough to hold stable temperature without constant refueling. Hardwoods like oak, hickory, and mesquite burn hotter and longer than softwoods, and charcoal burns hotter than wood with less smoke, making it ideal for stability, many competition pitmasters use charcoal with wood chunks for smoke flavor.
Practical Temperature Mapping and Measurement

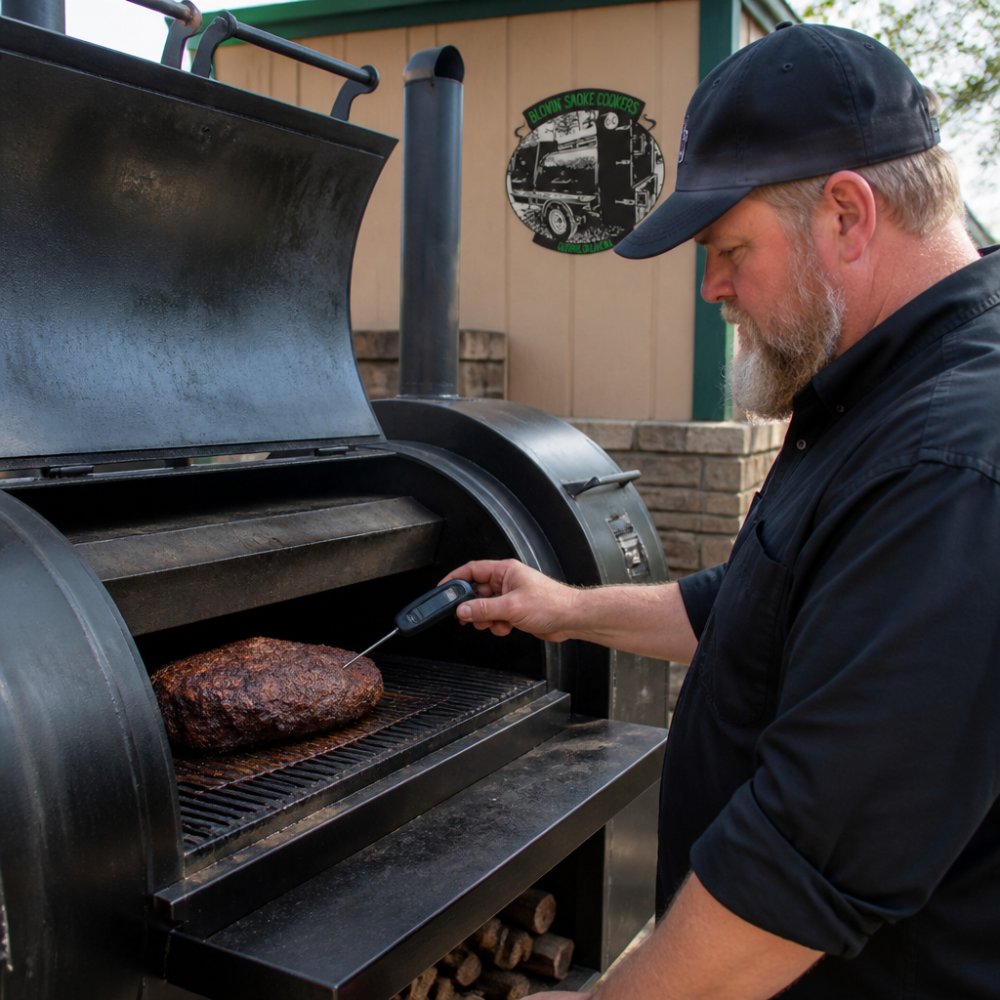

Temperature mapping means measuring actual temperature at different points inside your smoker. Use a digital probe thermometer to measure the front, middle, and rear grates over 30-45 minutes after the smoker stabilizes; the difference between highest and lowest readings is your variation. Most reverse flow smokers show 10-20 degrees across the chamber, if yours is larger, check that the baffle is seated properly and not warped.
Reverse Flow Smoker Cooking Tips: Maximizing Performance
Getting the best results from a reverse flow smoker means understanding placement, water management, and maintenance.
Placement of Meat and Water Pans
Placement matters less in a reverse flow smoker than in a traditional offset, but it still matters. Put larger cuts like briskets and pork butts in the center of the grates where temperature is most stable; smaller items like chicken or ribs can go anywhere, since the center-to-edge difference is usually only 5-10 degrees.
Cleaning, Grease Management, and Maintenance
Grease buildup reduces efficiency and can cause flare-ups. After each cook, scrape the grates with a grill brush, wipe down the interior walls, and clean the baffle plate, grease on the baffle reduces its radiant heat output. Empty the grease trap or drip pan so excess grease doesn't pool and create bitter smoke.
Reverse Flow Smoker Advantages: Why Pitmasters Choose This Design
Reverse flow smokers dominate competition BBQ for specific reasons. Understanding these advantages helps you decide if this design matches your needs.
Superior Thermal Mass and Heat Retention
Thermal mass is the amount of material in the smoker that absorbs and holds heat. Reverse flow smokers typically have thicker steel and larger baffles than offsets, so they retain temperature better when you open the door or outside temperature drops, and recover faster because the baffle radiates heat back into the chamber. This matters most on long or overnight cooks: temperature swings are smaller, fewer adjustments are needed, and you can actually sleep while the smoker holds steady.
Fuel Efficiency and Extended Cook Times
Because reverse flow smokers distribute heat more efficiently, they use less fuel to maintain temperature, heat doesn't escape as quickly, and the baffle radiates it multiple times before it exits. Most pitmasters report 15-25% better fuel efficiency than traditional offsets, which adds up on a 12-hour cook. Load the firebox once and hold stable temperature for 8-10 hours without refueling, which is why reverse flow smokers are standard equipment for catering operations and competition teams.
Consistency for Competition and Catering
Competition BBQ judges on consistency: every brisket must taste the same, every rack of ribs must have the same color and tenderness. Reverse flow smokers deliver it because temperature variation is minimal, meat cooks evenly across the grates, and results are repeatable cook after cook, which is why our SNS Competition 60 Cabinet Smoker and other competition-grade models use reverse flow technology. For catering, that consistency means clients get the same quality every time.
Common Mistakes to Avoid When Operating a Reverse Flow Smoker
Even with a superior design, mistakes happen. Here's what to avoid.
Overloading the firebox. Too much fuel creates heat that's hard to control.
Neglecting the baffle plate. A dirty or damaged baffle reduces performance dramatically.
Cooking with the door open. Every opening drops temperature and costs recovery time.
Skipping maintenance. Ash buildup, grease accumulation, and rust reduce efficiency.
At Blowin' Smoke Cookers, we build reverse flow smokers for pitmasters who demand precision.
Frequently Asked Questions
How does a reverse flow smoker move heat and smoke differently than a traditional offset smoker?
In a traditional offset smoker, heat and smoke travel directly from the firebox across the cooking chamber and out the exhaust. A reverse flow smoker uses an internal baffle plate that forces heat and smoke to travel under the baffle first, then reverse direction and flow back over the meat before exiting. This reversal creates more uniform heat distribution and eliminates the hot side/cold side problem common in standard-flow designs. The baffle also serves as a heat sink, absorbing radiant energy and releasing it slowly for consistent temperature.
Does a reverse flow smoker cook more evenly than other designs?
Yes. The reverse-flow design significantly reduces temperature variation across the cooking chamber. By forcing smoke and heat to travel under the baffle plate and then back over the cooking grates, the smoker distributes heat more uniformly. This means less monitoring for hot spots and more predictable results, critical for competition pitmasters and catering professionals. Thermal mass from the baffle plate and chamber walls also helps stabilize temperature swings caused by vent adjustments or fuel changes.
What is the role of the baffle plate in a reverse flow smoker?
The baffle plate is the core component that defines reverse-flow operation. It's a solid steel plate positioned horizontally inside the cooking chamber. Incoming heat and smoke from the firebox hit the baffle and are forced to reverse direction, flowing backward and upward over the meat before exiting through the exhaust stack. The baffle also acts as a thermal mass, absorbing direct radiant heat from the fire and re-radiating it evenly, which reduces hot spots and temperature fluctuations during the cook.
Do reverse flow smokers use more fuel than traditional offset smokers?
No. Reverse flow smokers typically use less fuel or similar amounts compared to traditional offsets. The baffle plate and chamber design improve heat retention and thermal efficiency, meaning the fire doesn't need to work as hard to maintain stable temperatures. The longer smoke path and better airflow control also allow for more complete combustion, which means less wasted fuel. This efficiency is one reason competition pitmasters and catering operations favor reverse-flow designs for extended cook sessions.
